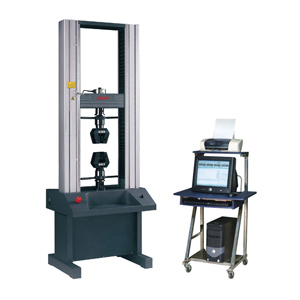

| WM027 Electronic Tungsten Wire Strength Tester | ||||||||||||
 |
||||||||||||
 【Scope of application】 The WM series electronic wire strength testing machine is specially designed and manufactured by our factory according to the wire strength test requirements and combined with the characteristics of the domestic wire industry. It uses special tungsten steel special fixtures. It is suitable for testing the tensile index of tungsten wire, molybdenum wire, copper wire, stainless steel wire and other metal material wires. 【Related standards】 GB/T4181--1997 Tungsten wire tensile strength and elongation test method GB/T4182-2003 Test method for tensile strength and elongation of molybdenum wire GB/T8358—2006 Wire rope breaking tensile test method
【technical parameter】 1. Working mode: microcomputer control, LCD Chinese display, print report and strength curve, support online communication. 2. Sampling frequency: 1000 times/sec 3. Measuring force range; 1%～100% 4. Force measurement accuracy: ≤±0.02%F.S 5. Stretching speed: 0.01～1000mm/min 6. Effective stroke: cross beam 800mm 7. Elongation resolution: 0.01mm 8. Gantry width: 400mm 9. Dimensions: 665×450×1640mm (L×W×H) 10. Weight: 175kg 11. Power source: Ac220V±10% 50Hz
|
