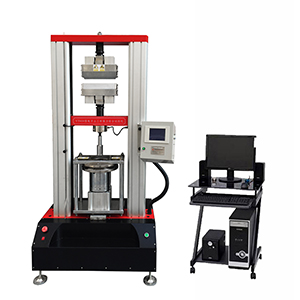

YT010 electronic geotextile strength comprehensive testing machine (50KN)

【Scope of application】

YT010 electronic geotextile strength comprehensive testing machine (1T-10T), used for geosynthetic materials in transportation, water conservancy, tunnels, construction engineering and other industries, including geotextiles, composite geotextiles, geogrids, geomembranes and related products The test of tensile, tearing, bursting, peeling, seam and other properties is fast and accurate with this machine.

JTG E50-2006 "Experimental Regulations of Geosynthetics for Highway Engineering"

GB/T 15788-2005 "Geotextile and related products wide strip tensile test method"

GB/T 16989-1997 "Geotextile Joint/Seam Wide Strip Tensile Test Method"

GB/T 14800-1993 "Test Method for Bursting Strength of Geotextiles" (equivalent to ASTM D 3787)

GB/T 13763-1992 "Tear strength test method of geotextile trapezoidal method"

GB/T 1040-1992 "Plastic Tensile Performance Test Method"

ASTM D4595-1986 "Geotextile and Related Products Wide Strip Tensile Test Method"

BS 6906.1-1987 "Geotextile and related products wide strip tensile test method"

GB/T 17640-1998 "Geosynthetics Filament Woven Geotextile"

【Operation software description】

Full-featured, easy-to-operate powerful JigaoTest software

The powerful JigaoTest software provides an intuitive operation interface, optional multi-language capabilities, powerful analysis and reporting functions, and a large number of standard test methods for the efficient industrial compliance testing of a full range of materials. A full set of optional test definition functions provide the ability to modify test templates and quickly adapt to changing requirements. Equipped with a rich and increasing standard library of test methods (GB, ASTM, ISO, DIN, EN, BS, etc.), and can choose international units, metric units, imperial units or mixed units according to customer needs. JigaoTest built-in geomaterials tensile function, compression function, CBR burst function, tear function, bending function, creep function, constant elongation test, constant load test, initial modulus, loose clamping, monofilament test And so on, and special functions can be customized. JigaoTest's powerful expert testing software has been certified by an international third-party software testing organization and can be upgraded for free for life.

【technical parameter】

1. Test method: CRE principle, microcomputer control, dual-screen display, support for online communication

2. Sampling frequency: 2500 times/sec

3. Measuring force range: 1%～100% of full scale

Model 1000 type 3000 type 5000 type

Full scale 10KN 30KN 50KN

4. Force measurement accuracy: ≤±0.02%F•S

5. Stretching speed: 0-500mm/min

6. Effective stroke of beam: 800mm Resolution: 0.01mm

7. Standard configuration function: wide strip pattern method: width 200mm tearing: width 100mm

CBR burst: φ50×100mm

8. Power supply: AC220V±10% 50Hz 1.5KW
