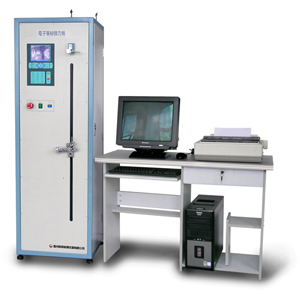

| WM021 Electronic Tungsten Wire Strength Tester | ||||||||||||||||||
 |
||||||||||||||||||
 【product description】 It is used to test the strong tensile properties of various tungsten, molybdenum wires and other metal wires. 【Related standards】 GB/T4181 GB/T4182 GB/T8358 【Measuring range】
【technical parameter】 1. Test method: Elongation at constant speed, measuring the breaking strength and elongation of the sample, breaking elongation, breaking strength and breaking elongation, etc. 2. Force measuring system: resistance strain load cell and 16-bit high-speed AD conversion chip 3. Sampling frequency: 1000Hz 4. Force measurement accuracy: ≤±0.02%F•S 5. Drive mode: stepper motor drive 6. Stretching speed: 1～500mm/min stepper motor drive, adjustable 7. Sampling length: 50～500mm adjustable 8. Print output: A4 format Chinese report/curve 9. Communication interface: RS232, 115200 baud rate 10. Power source: Ac220V±10% 50Hz 11. Rated power: 150W (stepping motor) 12. Weight: about 60Kg 13. Dimensions: 520×400×1600 mm
|
